3842523553 Кутовий з’єднувач 60х60 10/10+кріплення

Name: 3842523553 Кутовий з'єднувач 60х60 10/10+кріплення
SKU: 3 842 523 553
Price: 392.39 UAH
Availability: InStock

392.39грн

В наявності

При замовленні від 100шт знижка 10%

In stock

3842523553 Кутовий з’єднувач 60х60 10/10+кріплення

Поставляється в комплекті з кріпленням, 2шт Т-болт, 2шт гайки

Product Description

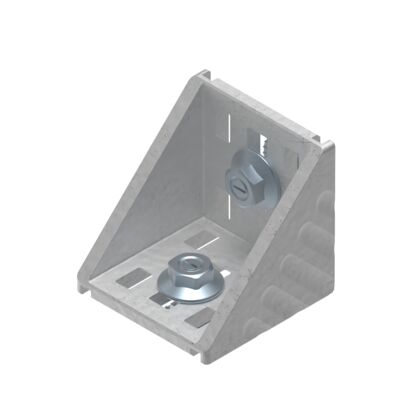

Bracket 60×60 set (standard) N10/10

Brackets with centering lugs for rapid, precise assembly with protection against turning
Centering lugs can be easily broken off for assembly on plates or at right angles to the slot
Intermediate element for positioning brackets in the next largest slot
Cover cap to protect from dirt, available in signal gray (RAL 7004) and black ESD (RAL 9005)
Profile finishing: not required

Product attributes
Profile slot	10
ESD	Yes
Dimensions	60×60
Fastening material included	Yes
Bending moment 1 [Nm]	125.0
Bending moment 2 [Nm]	150.0
Scope of delivery	Bracket (standard) incl. fastening material (FS)
Material information	Bracket: Diecast aluminum, vibratory ground Fastening material: Steel, galvanized
Material	Diecast aluminum, vibratory ground
Fastening material	2x T-bolt M8x20 2x flange nut M8
Recommended accessories	Cover cap for bracket 60×60, black (3842548853) Cover cap for bracket 60×60, signal gray (3842548852) Intermediate element for 10 mm slot (3842523537)
Weight [kg]	0.16
