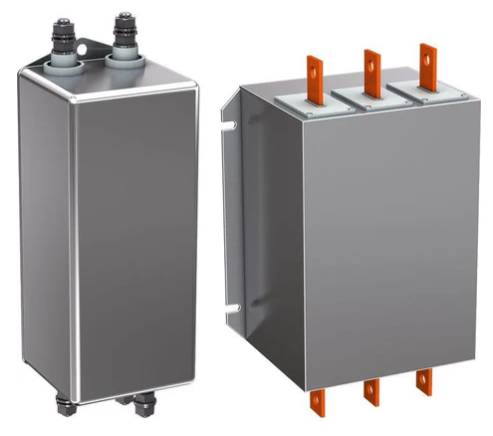

R911384338 Фільтр ЕМС FCAF01.1A-A100-E-0400-N-05-NNNN

Ordering Part number

R911384338

Type Code

FCAF01.1A-A100-E-0400-N-05-NNNN

General Introduction

Mains filters ensure compliance with the EMC limit values and suppress the leakage currents caused by capacity. The mains filters are tailored to the frequency converter and scalable by current, drive number, and motor cable length. In combination with shielded motor cables, the mains filters enable fault-free operation.

Serie of Filtes

FCAF01.1A

Main Voltage

3 AC 380-480 V

Nominal Current (A)

400

EMC Category

Category C3 as per DIN EN 61800-3

With this filter, Max. Cable Length from VFD to Motor (m) (Without Derating)

100

Protection Type

IP00

Combination with

VFC 5610 3 AC 380-480 V 110kW – 185kW

EFC 5610 3 AC 380-480 V 110kW – 160kW

Size WxHxD (mm)

190x320x120

Weight (kg)

7.5

Application

To Comply with EMC C3 and increase the cable length from VFDs to Motor to 100m
