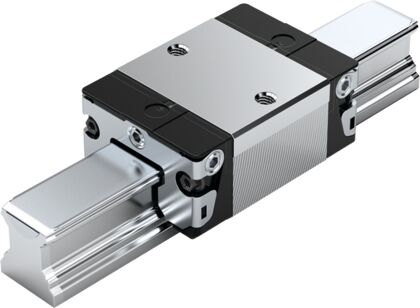

R2010 193 30 Каретка кулькова Bosch REXROTH BSHP Resist NR SKS 15 H С0

R2010 193 30 Каретка кулькова Bosch REXROTH BSHP Resist NR SKS 15 H С0

В наявності

R2010 193 30, R201019330 , R2010-193-30

Артикул: R2010 193 30 Категорія: Профільні рейкові направляючи Bosch REXROTH Позначок: Bosch, R2010 193 30, R201019330, Rexroth, цена в Киеве. прецизионные детали от "ООО «АЗ Техника»" - Hiwin, Шариковые рельсовые направляющие и каретки: продажа Бренд: Bosch REXROTH

Опис
Додаткова інформація

R2010 193 30 Каретка кулькова Bosch REXROTH BSHP Resist NR SKS 15 H С0

Technical Specs

Product attributes
Version	Ball rail system.
Nominal size [mm]	15.
Format	SKS – slimline, short, standard height.
Model	High-precision ball runner block.
Material (profiled rail systems)	Corrosion-resistant steel (runner block body Resist NR).
Preload class	C0 – Without preload (clearance)..
Accuracy class	H – Highly accurate.
Seal	SS – Standard seal.
Ball chain	Without ball chain (standard).
Lubrication	Pre-lubricated, preserved.
Self-aligning for compensation of misalignments	Without self-alignment.
Width of runner block [mm]	34.0.
Length of runner block [mm]	44.7.
Height of runner block [mm]	19.9.
Height runner block with guide rail [mm]	24.0..
Maximum acceleration rate amax [m/s²]	500.0
Note: Max. acceleration amax	If F_comb◡> 2.8 • F_pr : a_max = 50 m/s^2.
Maximum permissible linear speed vmax [m/s]	5.0.
Permissible ambient temperature (min. … max.)	-10 °C … +80 °C.
Note: permissible ambient temperature (min. … max.)	100 °C admissible for short time. For operation at negative temperatures, please consult us.
Friction coefficient μ	0.002 … 0.003.
Note: friction coefficient μ	Without friction of seal.
Weight [kg]	0.1.
Dynamic load capacity C50 [N]	8470.0.
Note: dynamic load capacity C50	Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.
Dynamic load capacity C100 [N]	6720.0.
Note: dynamic load capacity C100	Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.
Static load capacity C0 [N]	7340.0.
Dynamic torsional moment load capacity Mt50 [Nm]	82.0.
Note: Dynamic torsional moment load capacity Mt50	Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.
Dynamic torsional moment load capacity Mt100 [Nm]	65.0.
Note: Dynamic torsional moment load capacity Mt100	Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.
Static torsional moment load capacity Mt0 [Nm]	71.
Dynamic longitudinal moment load capacity ML50 [Nm]	37.0.
Note: Dynamic longitudinal moment load capacity ML50	Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.
Dynamic longitudinal moment load capacity ML100 [Nm]	29.0.
Note: Dynamic longitudinal moment load capacity ML100	Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.
Static longitudinal moment load capacity ML0 [Nm]	32.
Pitch T guide rail [mm]	60.
Dimension A (profiled rail systems) [mm]	34.
Dimension A1 (profiled rail systems) [mm]	17.
Dimension A2 (profiled rail systems) [mm]	15.
Dimension A3 (profiled rail systems) [mm]	9.5..
Dimension B (profiled rail systems) [mm]	44.7.
Dimension B tolerance (profiled rail systems) [mm]	+0.5.
Dimension B1 [mm]	25.7.
Dimension E1 [mm]	26.
Dimension E8 (profiled rail systems) [mm]	24.55.
Dimension E9 (profiled rail systems) [mm]	6.7.
Dimension H [mm]	24.0.
Dimension H1 (profiled rail systems) [mm]	19.9.
Dimension H2 with cover strip (profiled rail systems) [mm]	16.3.
Dimension H2 without cover strip (profiled rail systems) [mm]	16.2.
Dimension K1 (profiled rail systems) [mm]	16.25.
Dimension K2 (profiled rail systems) [mm]	17.85.
Dimension K3 (profiled rail systems) [mm]	3.2.
Dimension K4 (profiled rail systems) [mm]	3.2.
Dimension N3 (profiled rail systems) [mm]	6.
Dimension N6 (profiled rail systems) [mm]	10.3.
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5.
Dimension S2 (profiled rail systems)	M4.
Dimension S5 (profiled rail system) [mm]	4.5..
Dimension S9	M2,5×3.5 mm
Dimension S9 thread diameter (profiled rail systems)	M2,5.
Dimension S9 lead [mm]	3.5.
Dimension T1 min [mm]	12.
Dimension V1 [mm]	5.

Каталог кулькові рейкові направляючи BSHP EN 2020

Товар на сайте Bosch REXROTH

Типорозмір	15
