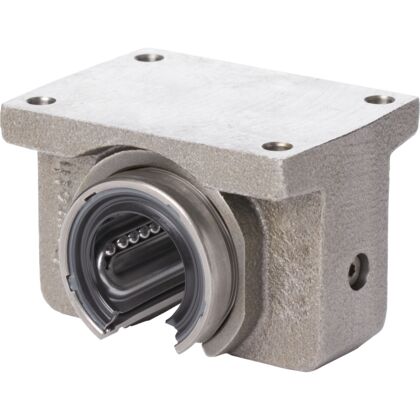

R1067 220 00 Лінійний пристрій d-20mm LSGO-M-20-DD
Technical Specs
| Product attributes | |
|---|---|
| Shaft diameter d [mm] | 20.0. |
| Format of linear bushings | O – Open. |
| Series | Standard (metal). |
| Type | Linear set. |
| Dynamic load capacity C [N] | 1280.0. |
| Note: dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Maximum acceleration rate amax [m/s²] | 100.0. |
| Maximum permissible linear speed vmax [m/s] | 2.5. |
| Outer diameter D [mm] | 32.0. |
| Permissible ambient temperature (min. … max.) | -10 °C … +80 °C. |
| Note: permissible ambient temperature (min. … max.) | for standard linear bushings without wiper seals.. |
| Weight [kg] | 0.4. |
| Static load capacity C0 [N] | 970.0. |
| Note: static load capacity C0 | The load capacities apply for the main direction of loading. |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Breakaway force [N] | 16. |
| Dimension A (profiled rail systems) [mm] | 60. |
| Dimension B (profiled rail systems) [mm] | 42. |
| Dimension B1 [mm] | 28. |
| Dimension D [mm] | 32. |
| Dimension E1 [mm] | 45. |
| Dimension E2 [mm] | 32. |
| Dimension H [mm] | 25.0. |
| Dimension L [mm] | 45. |
| Dimension S [mm] | 4.5. |
| Dimension V [mm] | 8. |
| Dimension W [mm] | 10. |
| Angle α [°] | 60. |
| Типорозмір | 20 |
|---|
