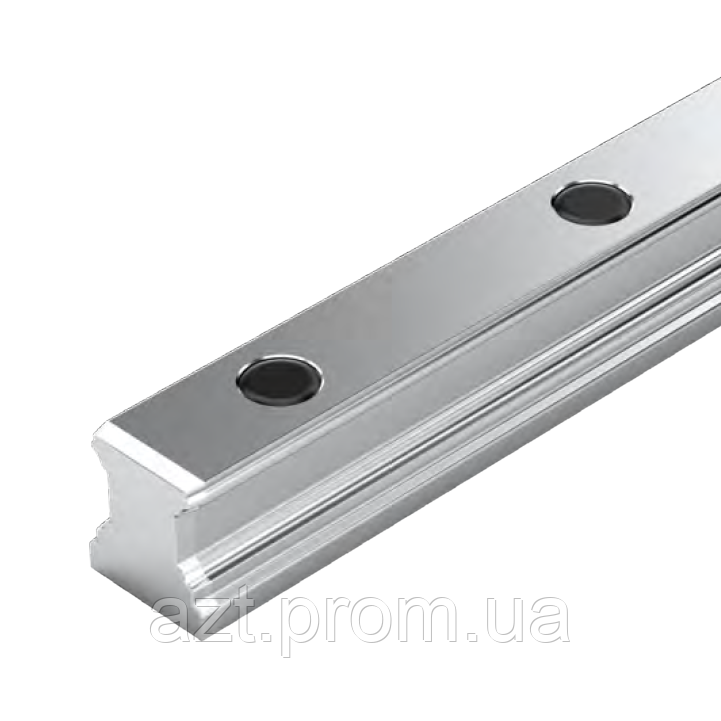

R1605 304 31 L-4000mm Направляюча кулькова Bosch REXROTH CS KSA-035-SNS-N-MA-AK

В наявності

Ціна вказана за 1м, направляюча має довжину 4м

Technical Specs

Product attributes
Version	Ball rail system.
Nominal size [mm]	35.
Format	SNS – Standard guide rail.
Material (profiled rail systems)	Carbon steel.
Accuracy class	N – Normal.
Guide rail mounting	For bolting from above.
Guide rail cover	Plastic caps.
Max. length Lmax [mm]	5836.0.
Note: Lmax	Available on request.
Minimum length Lmin [mm]	104.0.
Number of holes nB (profiled rail systems)	48.
Number of sections	1-piece.
Mass m (kg/m) [kg/m]	6.8.
Permissible ambient temperature (min. … max.)	-10 °C … +80 °C.
Note: permissible ambient temperature (min. … max.)	100 °C admissible for short time. For operation at negative temperatures, please consult us..
Weight [kg]	0.
Recommended rail length (formula)	L = n_B• T ‒ 4 mm.
Product information	Please configure the product to add it to the shopping cart.
Pitch T guide rail [mm]	80.
Dimension A2 (profiled rail systems) [mm]	34.
Dimension D [mm]	15.
Dimension H2 without cover strip (profiled rail systems) [mm]	31.85.
Dimension N6 (profiled rail systems) [mm]	20.5.
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5.
Dimension S5 (profiled rail system) [mm]	9.
Dimension T [mm]	80.
Dimension T1 max (profiled rail systems) [mm]	68.
Dimension T1 min [mm]	12.
Dimension T1 s (profiled rail systems) [mm]	38.
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T1_S with tolerances ± 0.75 recommended.
