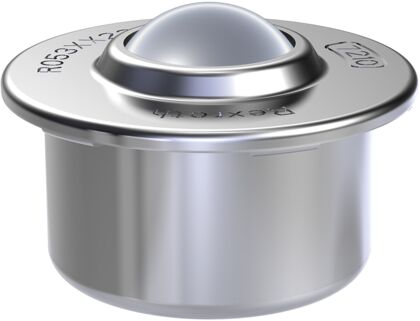

R0530 130 10 Кулькова опора, кулька 30 мм Bosch REXROTH

Name: R0530 130 10 Кулькова опора, кулька 30 мм Bosch REXROTH
Brand: Bosch REXROTH
SKU: R0530 130 10
Availability: InStock

933.71грн

В наявності

R0530 130 10, R053013010, R0530-130-10

Є в наявності

R0530 130 10 Кулькова опора, кулька 30 мм
Кулькові опри забезпечують надійне переміщення в різноманітних напрямках

Technical Specs

Product attributes
Nominal size [mm]	30
Dynamic load capacity C [N]	2500.0
Maximum permissible linear speed vmax [m/s]	2.0
Note: maximum permissible speed vmax	In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load.
Outer diameter D [mm]	45.0
Operating temperature (min. … max.)	-30 °C … +100 °C
Note: permissible operating temperature (min. … max.)	At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil may have to be washed out.
Weight [kg]	0.28
Static load capacity C0 [N]	5000.0
Maximum operating temperature [°C]	+100
Minimum operating temperature [°C]	-30
Dimension a [mm]	3.7
Dimension b [mm]	7.9
Tolerance c	+0.2
Dimension D [mm]	45
Tolerance D [mm]	±0.08
Dimension D1 [mm]	55
Dimension dW [mm]	30.162
Dimension h [mm]	13.8
Dimension H [mm]	37.5
Tolerance h	±0.3
